Product Presentation

Dry Guard:Topsorb’s patent product ,
Patent N.O:ZL 2011 3 0335168.5

Dry Guard-1500g
*Dry Guard-1500g has double “breathing area”, which makes adsorption faster, more effective in the same space and period;
*Its has thickness of less than 10mm, it can be covered on the goods, without occupying loading space;
*Absorbent weight:1500g, more than 3.75kg moisture is absorbable;good drapability, good foldability;
*Package type: Fabric, without hook.

Dry Guard Strip-1000g
*Absorbent weight :1000g,more than 2.5kg moisture is absorbable; good drapability ,can be inserted in the container groove, Save encasement space.
*Package type: Fabric, with hook.

Dry Guard Strip-750g
*Absorbent weight :750g, more than 1.8kg moisture is absorbable; good drapability ,can be inserted in the container groove, Save encasement space.
*Package type: Fabric, with hook.

Dry Guard Strip-500g
*Absorbent weight :500g, more than 1.25kg moisture is absorbable; good drapability ,can be inserted in the container groove, Save encasement space.
*Package type: Fabric, with hook.



Solid gel & Anti-leakage

moisture protection
After adsorption

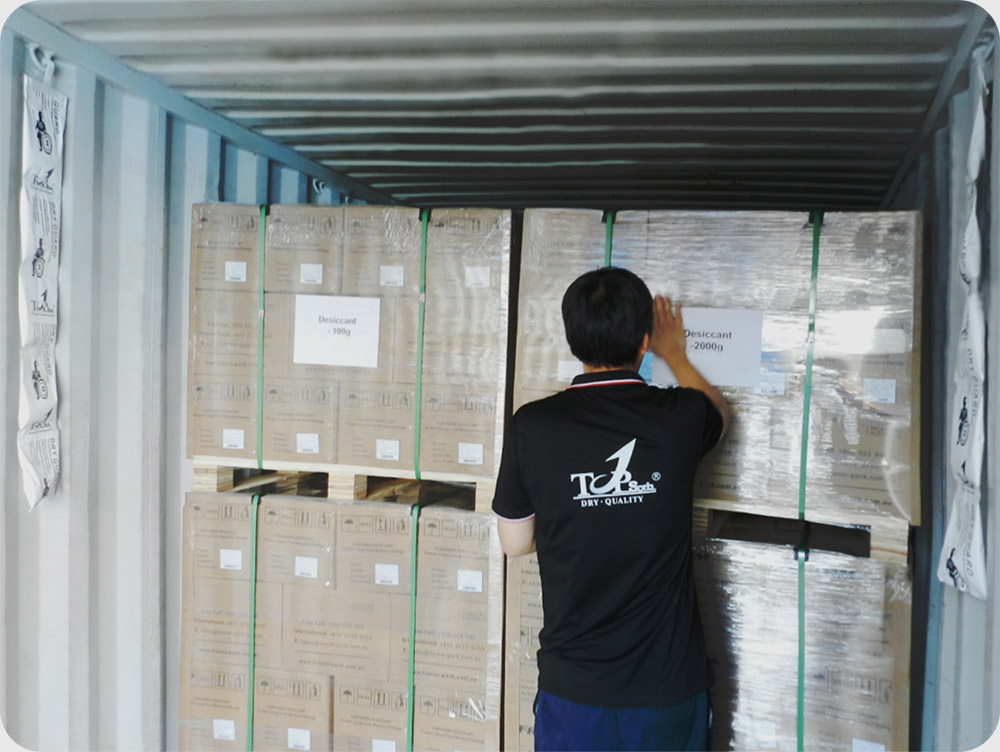

Show Pictures of Dry Guard Series

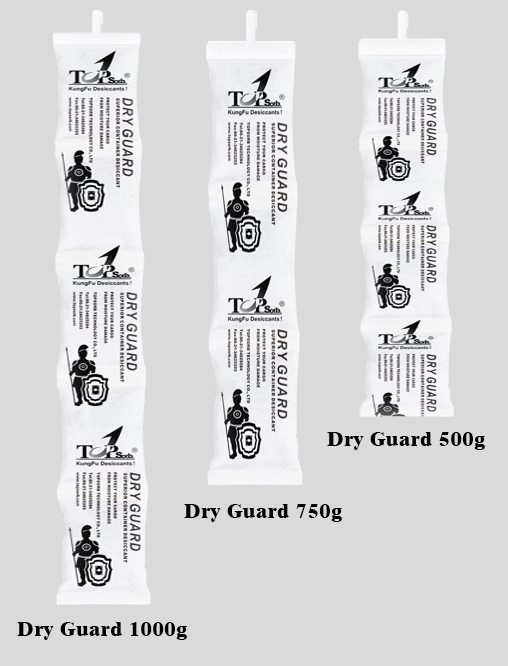

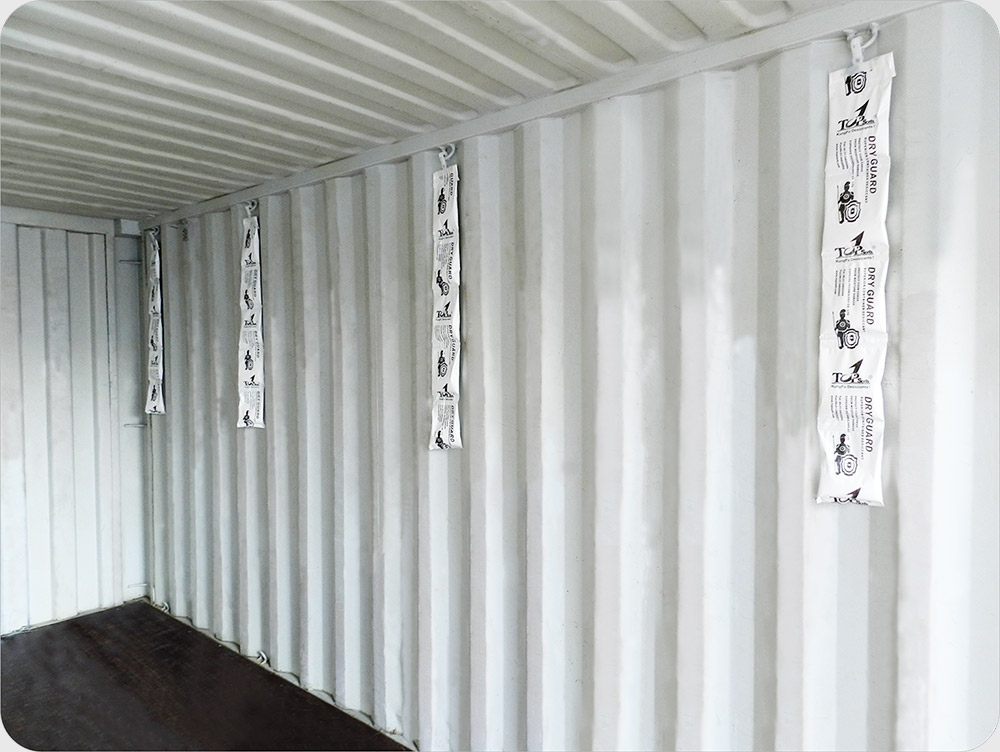

Show Pictures of Dry Guard Strip

Topsorb VS Other CaCl2 powder desiccant

Topsorb desiccant after adsorption
Tips:
Topsorb developed unique formula of absorbents, which is quite different from the other desiccant suppliers, not matter in physical appearance, or in adsorption performance.

First, it has stronger adsorption capacity over 300%~350%.

Second, fantastically, in the whole process of absorbing,the absorbent remains in solid form , no single minute turn into liquid form, from the beginning, to the full working conditions, until being saturated,

It entirely prevents the risk of liquid leakage.
CaCl2 Powder desiccant after adsorption
Tips:
Most desiccant products on the current market, the CaCl2 powders inside sachets turns into entire liquid when the adsorption reaches 60%~80%. This state of being liquid lasts several days or even longer (depending on the temperature & humidity conditions) , then it slowly turns into gel.

It is a high-risk period when the absorbent remains in liquid. When the desiccant sachets are squeezed or pressed during transport or operation, the joint of sealing part has a risk to be cracked and damaged. As a result, the leakage occurs from the inside liquid,and then the customers’ goods is polluted by the leakage.

Usage instruction

Dry Dragon container desiccant

1. Check whether the conatiner is damaged,whether there is a hole or crack on the container wall,the top and bottom.Container doors can be closed tightly and the seal must be good.The container must be dry and clean before loading.

2. Inspeciton of container wood floor.if possible,do not use containers with wood floor humidity over 20%,it would increase the risk of damp.

3. Seal all air-wents on the container wall.Very important!
Desiccant plays an effective role only in a closed enviroment.If the container door is not shut tightly, or there is damage on the container or the air-vents inside are not sealed,desiccant will never be able to absorp up the mositure that continually enteres from outside.

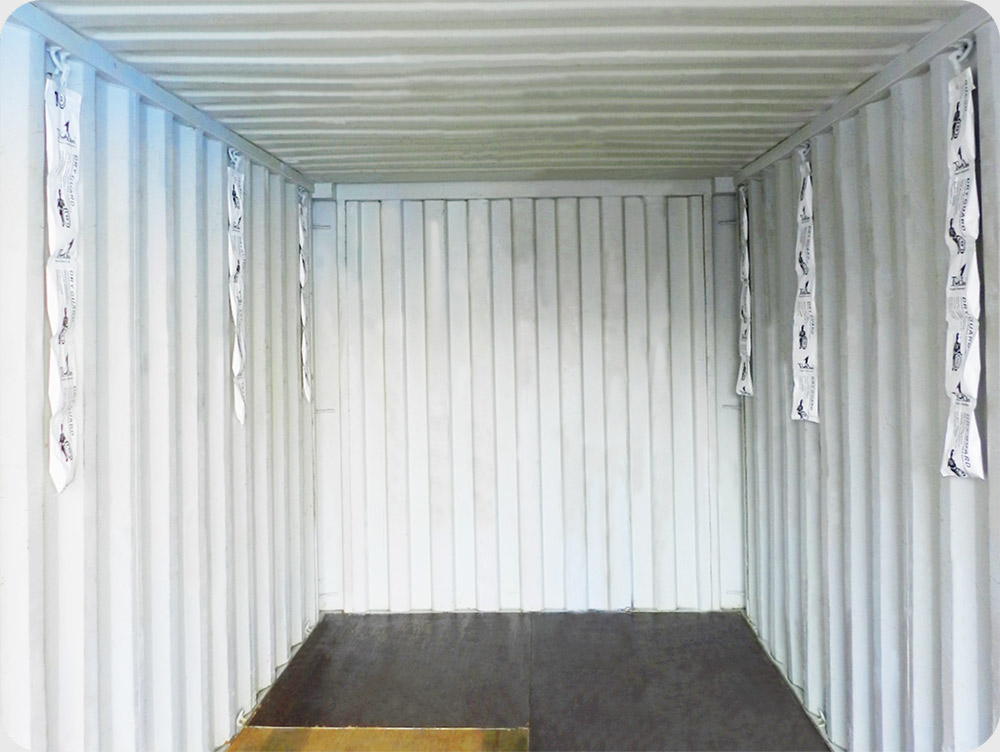

4. Hang Dry Guard and recommended dosage:Open the package and hang dry guard 1000 up to the iron hoop on the container wall,as shown in the picture,Use 4pcs~6pcs per 20’ container,8pcs~12pcs per 40’ container.For professional advice of desiccant dosage,please contact Topsorb.

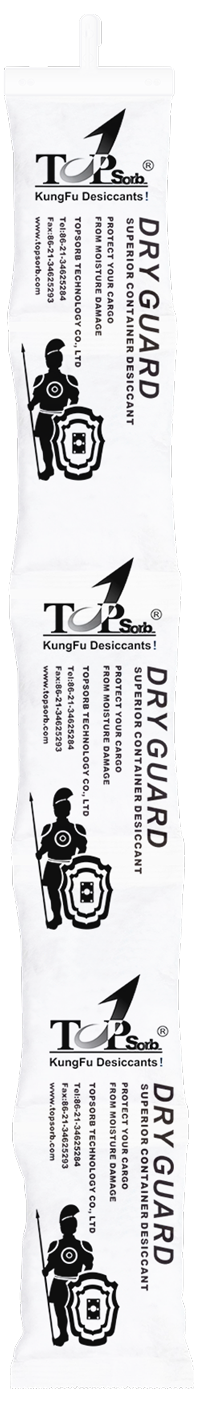

Dry Guard Strip- 1000g Specification

Appearance Size:1055mmX150mmX30mm;
Quantity:12pcs/carton;
Carton Size: 560mmX365mmX200mm;
Package:1pcs/1 PE bag,
              1 big PE bag/carton;
Shelf life:24 months
Gross Weight:13kg;
Ctn Qty per pallet: 6ctns/layer X 10 layer = 60ctns

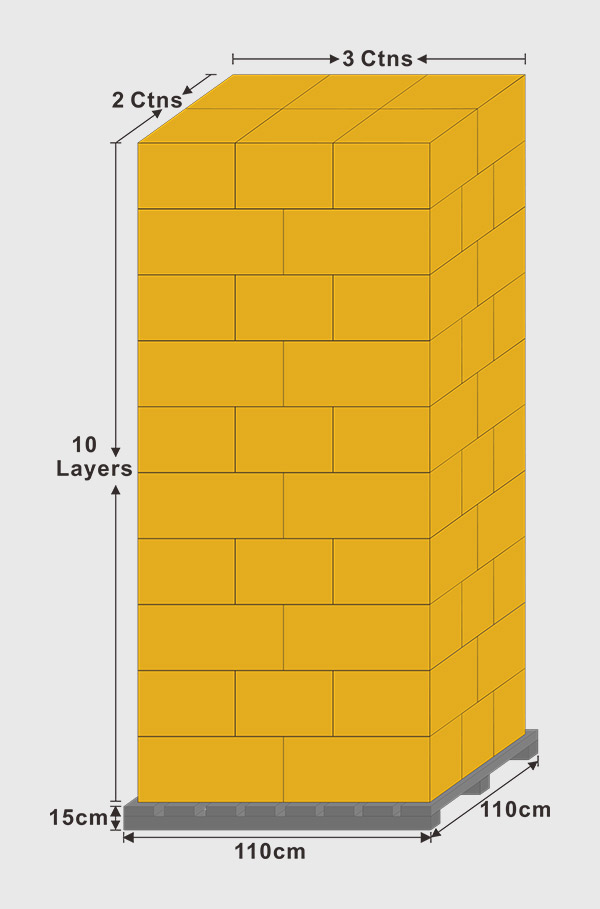

Loading Drawing

How to use Dry Guard-1000?

  • STEP1:
    Pick the printed adhesive sheets in the carton,seal all air-vents on the container wall. Very important!

  • STEP2:
    Inspect PE bags and cartons to ensure no damage during transportation.

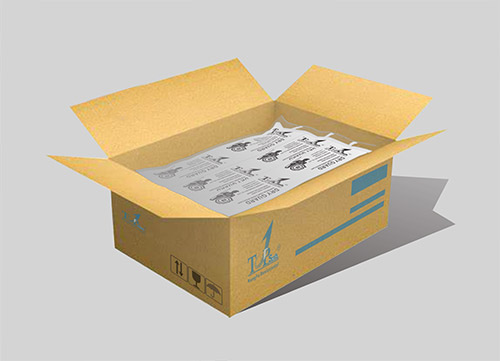

  • STEP3:

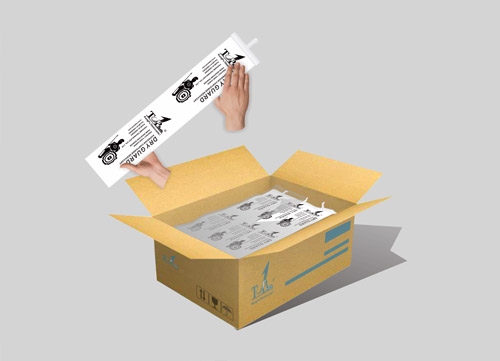

    Open the package.

  •

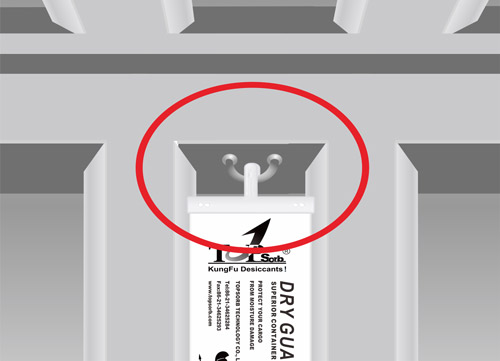

  • STEP4:
    Hang Dry Guard 1000g, 750g or 500g up to the iron hoop on the container wall.

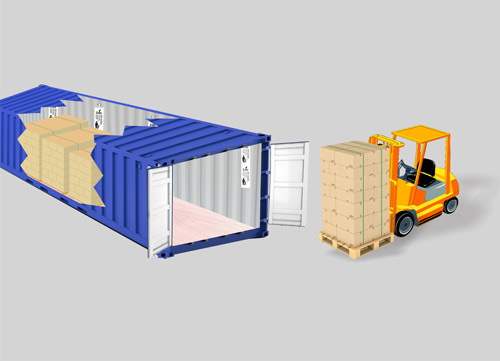

  • STEP5:

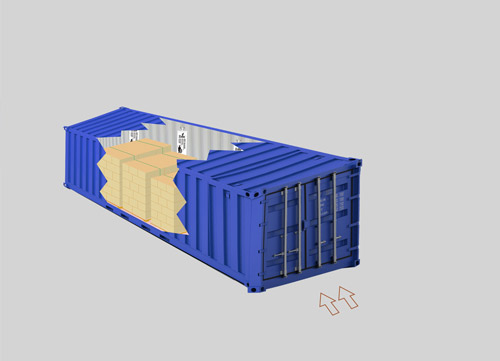

    Load the cargo into the container, which has been equipped with Dry Guard desiccants.

  • STEP6:
    Close container doors.

Documents Download
