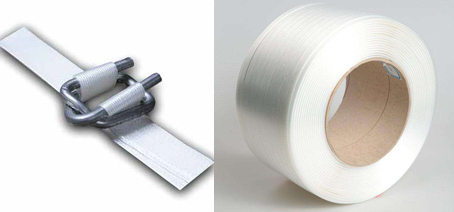

Polyester Composite Strap

Polyester Composite Strap is made of high-strength polyester, and it has been widely applied in transport safety packaging for its special texture and high anti cushioning performance. Due to its components of high macromolecular synthetic polyester, it can well bind and fix scattered bundles of goods, making their transport more secure and fast.

Benefits:

●Extremely high break strength.
●Re-tensionable.
●No sharp edges that could damage your goods.
●Cost efficiency (much cheaper than traditional solutions such as: steel strap, steel cables or chains)
●Composite Strapping will not rust.
●Fast and Easy to Handle.
●High Cross-Directional Strength.
●High Shock Absorbtion during transport.
●Strength of up to 1800 daN / 4050 lbf.



Item No.

Width

Broken Load

Load Capacity

Meter/Coil

Coil/Ctn

Coil/Pallet

Affilicated Buckle

TS-CS-40

13 mm or 1/2"

470 kg

300 kg

1100 m

2 coils

72 coils

TS-BS-30

TS-CS-50

16 mm or 5/8"

670 kg

425 kg

850 m

2 coils

72 coils

TS-BS-35

TS-CS-60

19 mm or 3/4"

770 kg

475 kg

600 m

2 coils

72 coils

TS-BS-40

TS-CS-65

19 mm or 3/4"

950 kg

625 kg

500 m

2 coils

72 coils

TS-BS-40

TS-CS-80

25 mm or 1"

1350 kg

785 kg

500 m

2 coils

72 coils

TS-BS-50

TS-CS-107

32 mm or 5/4"

2600 kg

1500 kg

230 m

2 coils

72 coils

TS-BS-70

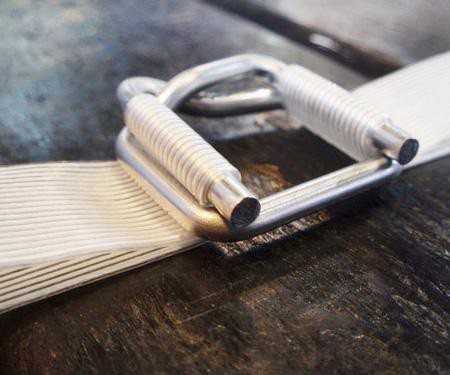

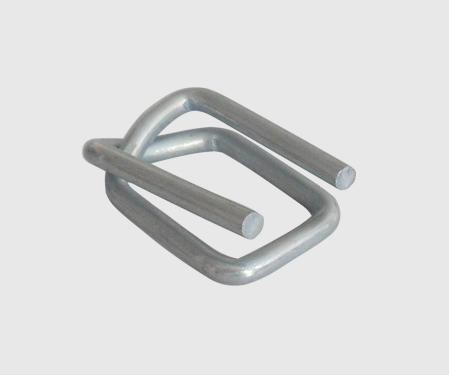

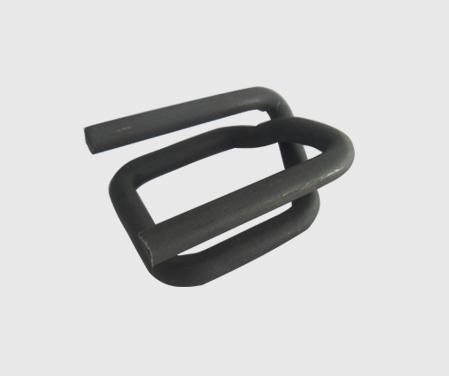

Wire buckle:

Wire buckle is pressed by large machinery, after galvanization or phosphating to surface, it has high tension resistance. It is an ideal metal buckle, which is used in conjunction with polyester cord strap, PP strap, PET strap,and polyester woven strap.
surface treatment: can be divided into two types: Galvanized buckle and Phosphatized buckle

Benefits:

●Joint efficiency of up to 90%
●Most consistent closure method in the industry
●Self locking
●Manufactured from high quality steel wire
●Available in different sizes and strengths

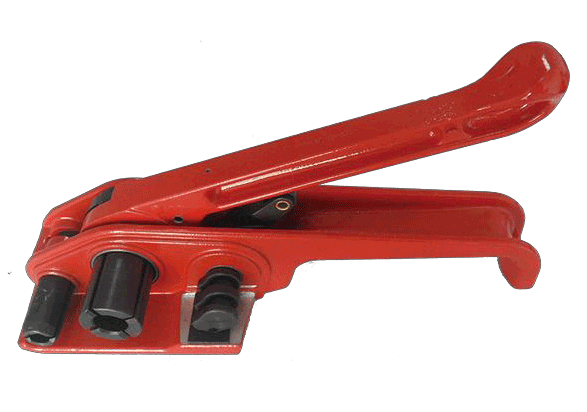

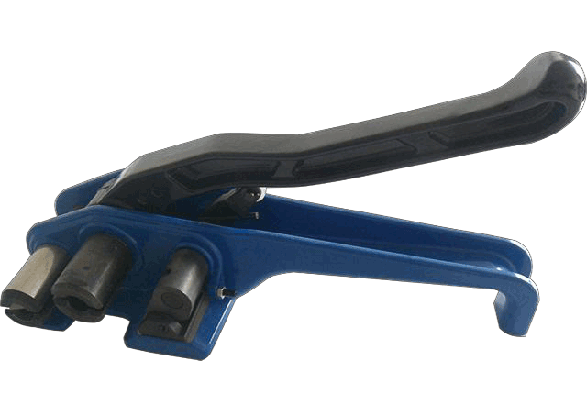

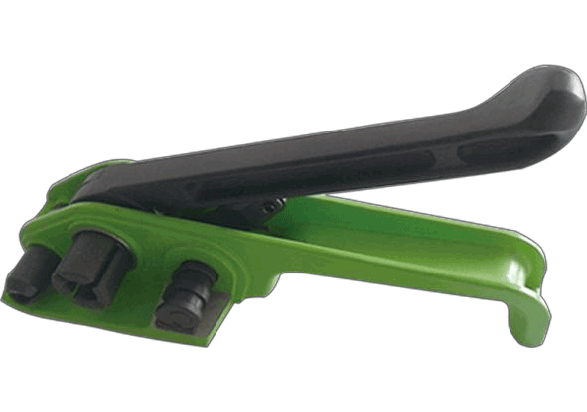

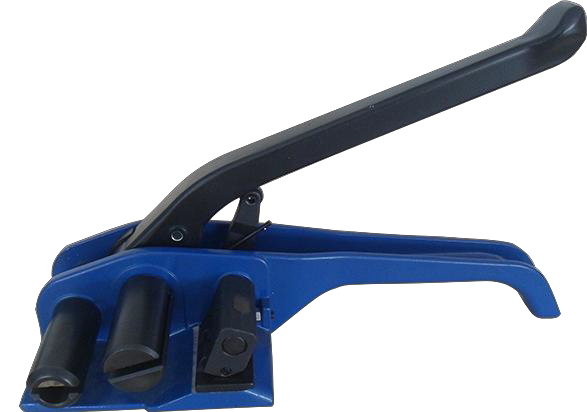

Strap tensioner

Strap tensioner, also called as manual strap tool, is used to tighten or cut strap after packed products. Its main function is to tighten packed goods, preventing goods from scattering due to loose strapping during the transport or storage process, and keeping bundles in a good order.
